Introduction

 Enumeration Districts (Output Areas in Scotland) and the derivative ward, local authority and county boundaries frozen at the time of the 1991 Census are widely used geographical building blocks in the United Kingdom - although not as popular as the more widely used (and ever-changing) postal geography.

In 1991, at the time of the last Census, the UK administrative system was hierarchical such that an Enumeration District (Output Area in Scotland) such as 6017BC10 fell within a ward (6017BC), which was itself part of a local authority (6017) which was in turn part of a much larger county (60).

Any data, and particularly Census data (which was collected by enumerators operating within Enumeration Districts or Output Areas - the lowest level of the Census geography), may be mapped using the administrative hierarchy.

Numeric counts (such as population counts, age/sex breaks, ethnicity or car ownership) may be aggregated for mapping and analysis purposes to wards, local authorities or counties.

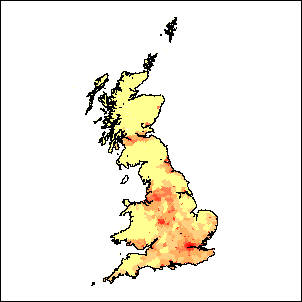

Thematic map
© Copyright Business Geographics

Numerous statutory data sets (unemployment or migration rates, population mid-year estimates) may also be mapped to administrative units.

Since 1991 the administrative geography of the United Kingdom has changed with, for example, the introduction of Unitary Authorities in 1996.

Several organisations collate and maintain administrative boundary products, including: The products are discussed in more detail below.

Business Geographics administrative products
Product Cost Update cost
1991 ED/OA, ward, local authority and county boundaries £3,500.00 £875.00 per update
1991 ward, local authority and county boundaries £2,500.00 £625.00 per update
1991 local authority and county boundaries £575.00 £143.75 per update
1991 county boundaries £250.00 £62.50 per update
1991 government standard region boundaries £100.00 £25.00 per update

Businesss Geographics frozen 1991 administrative boundaries were compiled using Thiessen processing to produce contiguous non-overlapping boundaries around each of the UK's enumeration district (ED) / output area (OA) centroids. Polygons have subsequently been dissolved to create ward, local authority, county and government standard region boundaries.

Thiessen tessellated boundaries are less accurate than the digitised boundaries created by ED-LINE and Ordnance Survey. However, where a representation of true boundary definitions is sufficient (particularly at ED/OA level) the tessellated products offer excellent value for money.

ED-LINE administrative products

 The ED-LINE Consortium (comprising Data Consultancy, London Research Centre, MVA and Ordnance Survey) have digitised a comprehensive set of Enumeration District / Output Area boundaries for England and Wales, Scotland and Northern Ireland.

These products - and products based around them - are available in a number of derivatives: The products are discussed in more detail below.

ED-LINE Professional
Product Cost Update cost
1991 ED/OA, ward, local authority and county boundaries (UK) £16,000.00 £0.00 (N/A)
1991 ward, local authority and county boundaries (UK) £7,000.00 £0.00 (N/A)
1991 local authority and county boundaries (UK) £2,000.00 £0.00 (N/A)

ED-LINE Professional Enumeration District (Output Area in Scotland) boundaries have been digitised to nest precisely within official Ordnance Survey wards and are supplied at 1:10,000 scale in Great Britain and 1:50,000 scale in Northern Ireland.

The full UK Enumeration District data set is supplied (free of charge) with a count of usually resident population.

ED-LINE Professional boundaries can also be supplied by geographic region.

Region 1991 ED/OA, ward, local authority and county boundaries 1991 ward, local authority and county boundaries 1991 local authority and county boundaries
England and Wales £12,000.00 £5,000.00 £1,600.00
Scotland £8,000.00 £3,500.00 £1,100.00
South East (including Greater London) £6,000.00 £3,000.00 £900.00
Greater London £5,000.00 £2,000.00 £600.00
Any other region in England and Wales £4,000.00 £2,000.00 £600.00

Extracts for specific areas can also be supplied (subject to minimum order charges). Please either contact the office or send email to info@geoweb.co.uk if you would like to order a localised extract.

ED-LINE Marketeer
Product Cost Update cost
1991 ED/OA, ward, local authority and county boundaries (UK) £8,000.00 £0.00 (N/A)
1991 ward, local authority and county boundaries (UK) £3,500.00 £0.00 (N/A)
1991 local authority and county boundaries (UK) £1,000.00 £0.00 (N/A)

Marketeer data sets from the ED-LINE Consortium feature generalised boundaries and are available at lower cost than the comparable Professional products.

ED-LINE Marketeer boundaries are provided at 1:200,000 scale in England and Wales, 1:100,000 scale in Scotland and 1:50,000 scale in Northern Ireland.

ED-LINE Marketeer boundaries can also be supplied by geographic region.

Region 1991 ED/OA, ward, local authority and county boundaries 1991 ward, local authority and county boundaries 1991 local authority and county boundaries
England and Wales £6,000.00 £2,500.00 £800.00
Scotland £4,000.00 £1,750.00 £550.00
South East (including Greater London) £3,000.00 £1,500.00 £450.00
Greater London £2,500.00 £1,000.00 £300.00
Any other region in England and Wales £2,000.00 £1,000.00 £300.00

Extracts for specific areas can also be supplied (subject to minimum order charges). Please either contact the office or send email to info@geoweb.co.uk if you would like to order a localised extract.

LA-LINE
Product Cost Update cost
LA-LINE Professional 1996 district and unitary authority boundaries (England and Wales) £1,600.00 £0.00 (N/A)
LA-LINE Marketeer 1996 district and unitary authority boundaries (England and Wales) £800.00 £0.00 (N/A)

Local authority district and unitary authority boundaries for England and Wales as of April 1996, derived from ED-LINE boundaries and quality assured by Ordnance Survey.

LA-LINE Professional boundaries are provided at 1:10,000 scale in England and Wales.

LA-LINE Marketeer boundaries are provided at 1:200,000 scale in England and Wales.

HEALTH-LINE
Product Cost Update cost
HEALTH-LINE Professional 1996 health authority boundaries (England and Wales) £1,200.00 £0.00 (N/A)
HEALTH-LINE Marketeer 1996 health authority boundaries (England and Wales) £600.00 £0.00 (N/A)

Health authority boundaries for England and Wales as of 1996, derived from ED-LINE boundaries and quality assured by Ordnance Survey.

HEALTH-LINE Professional boundaries are provided at 1:10,000 scale in England and Wales.

HEALTH-LINE Marketeer boundaries are provided at 1:200,000 scale in England and Wales.

MP-LINE
Product Cost Update cost
MP-LINE Professional 1997 parliamentary constituency boundaries £2,800.00 £0.00 (N/A)
MP-LINE Marketeer 1997 parliamentary constituency boundaries £1,400.00 £0.00 (N/A)

Parliamentary constituency boundaries for Great Britain as of 1997, derived from ED-LINE boundaries and quality assured by Ordnance Survey.

MP-LINE Professional boundaries are provided at 1:10,000 scale in England and Wales.

MP-LINE Marketeer boundaries are provided at 1:200,000 scale in England and Wales.

MEP-LINE
Product Cost Update cost
MEP-LINE Marketeer 1997 European parliamentary constituency boundaries £500.00 £0.00 (N/A)

European parliamentary constituency boundaries for Great Britain as of 1997, derived from ED-LINE boundaries and quality assured by Ordnance Survey.

MP-LINE Professional boundaries are provided at 1:10,000 scale in England and Wales.

Ordnance Survey administrative products
Product Cost Update cost
OS 1:50,000 county and unitary authority boundaries (England and Wales) £1,000.00 £250.00 per annum
OS 1:50,000 district boundaries (England and Wales) £2,000.00 £500.00 per annum
OS 1:50,000 county, unitary authority and district boundaries (England and Wales) £2,500.00 £625.00 per annum
OS 1:50,000 ward boundaries (England and Wales) £7,500.00 £1,875.00 per annum
OS 1:50,000 parish and community boundaries (England and Wales) £9,000.00 £2,250.00 per annum
OS 1:50,000 parliamentary constituency boundaries (England and Wales) £2,500.00 £625.00 per annum
OS 1:50,000 European parliamentary constituency boundaries (England and Wales) £1,250.00 £312.50 per annum
All OS 1:50,000 administrative boundaries (England and Wales) £20,000.00 £5,000 per annum

Ordnance Survey is responsible for mapping statutory changes in UK administrative geography.

The products listed above are derived from the definitive Ordnance Survey 1:10,000 scale Boundary-Line™ data set.
